Conveyor simultaneous measurement
The highest precision in determining the positioning of car bodies is achieved in six dimensions (6D), whether in continuous, stop-and-go, or static operation.
VEPOSE enables the detection of the vehicle's position and immediately communicates it to the robotic system so that robotic movements can be adjusted accordingly.
Thanks to the comprehensive capture of vehicles, VEPOSE operates with the largest possible measurement range, making it exceptionally error-tolerant and highly accurate in measurement.
VEPOSE is an add-on for CALIPRI CB20 measurement systems. It determines the position of the vehicle on wheels or on the skid on a moving conveyor as well as during stop-and-go operation and transmits this information to subsequent robots for path correction.

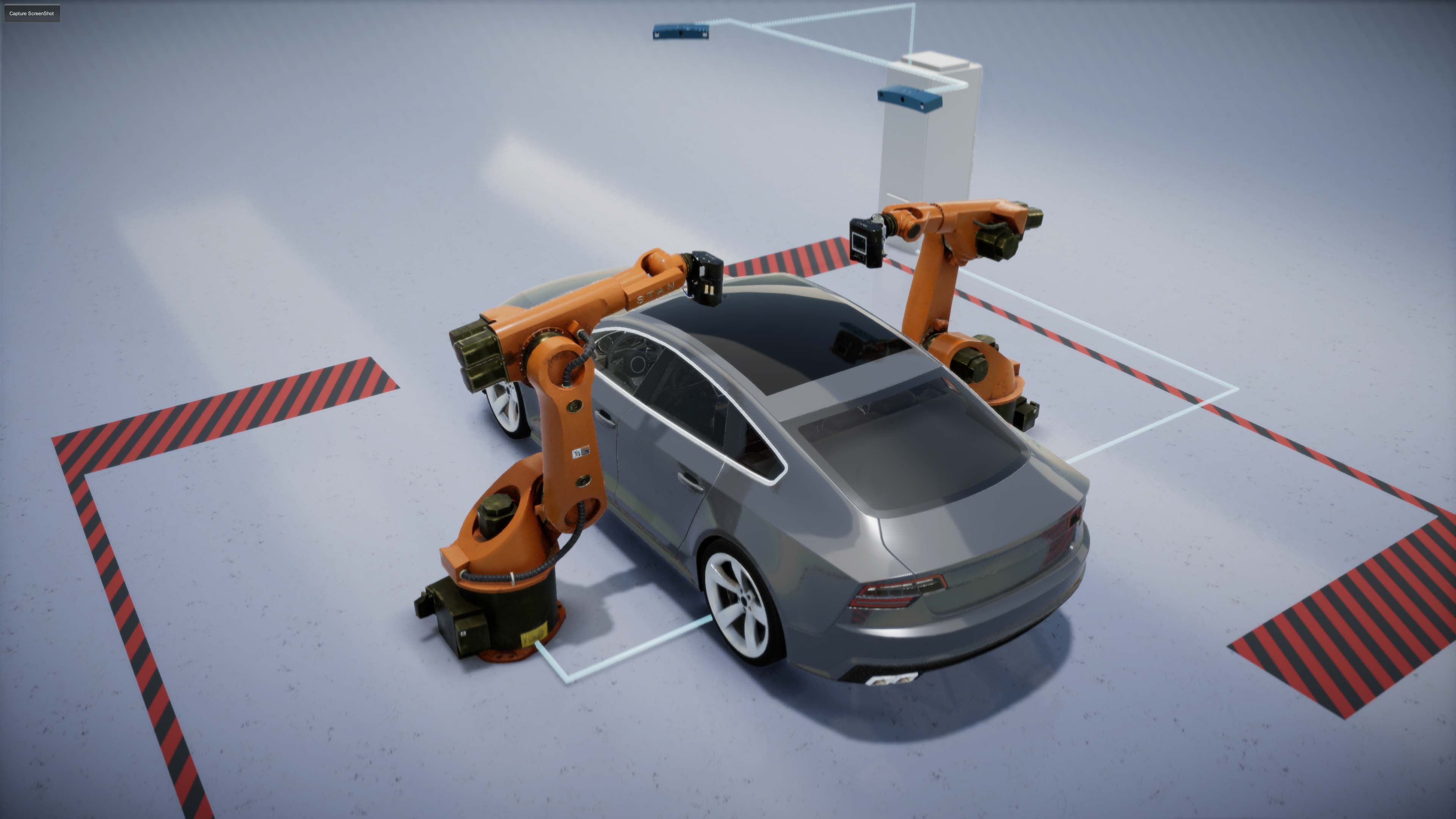

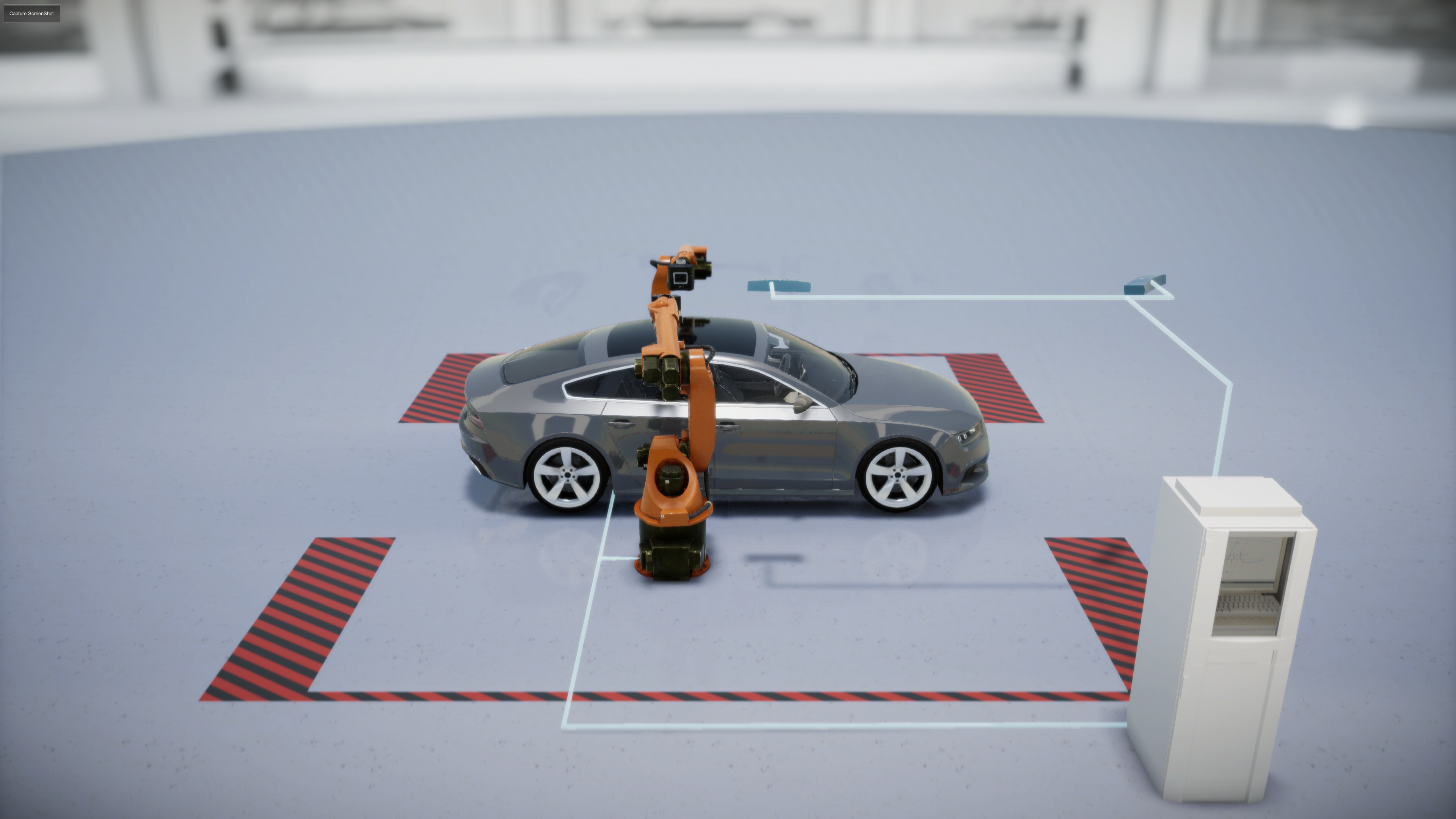

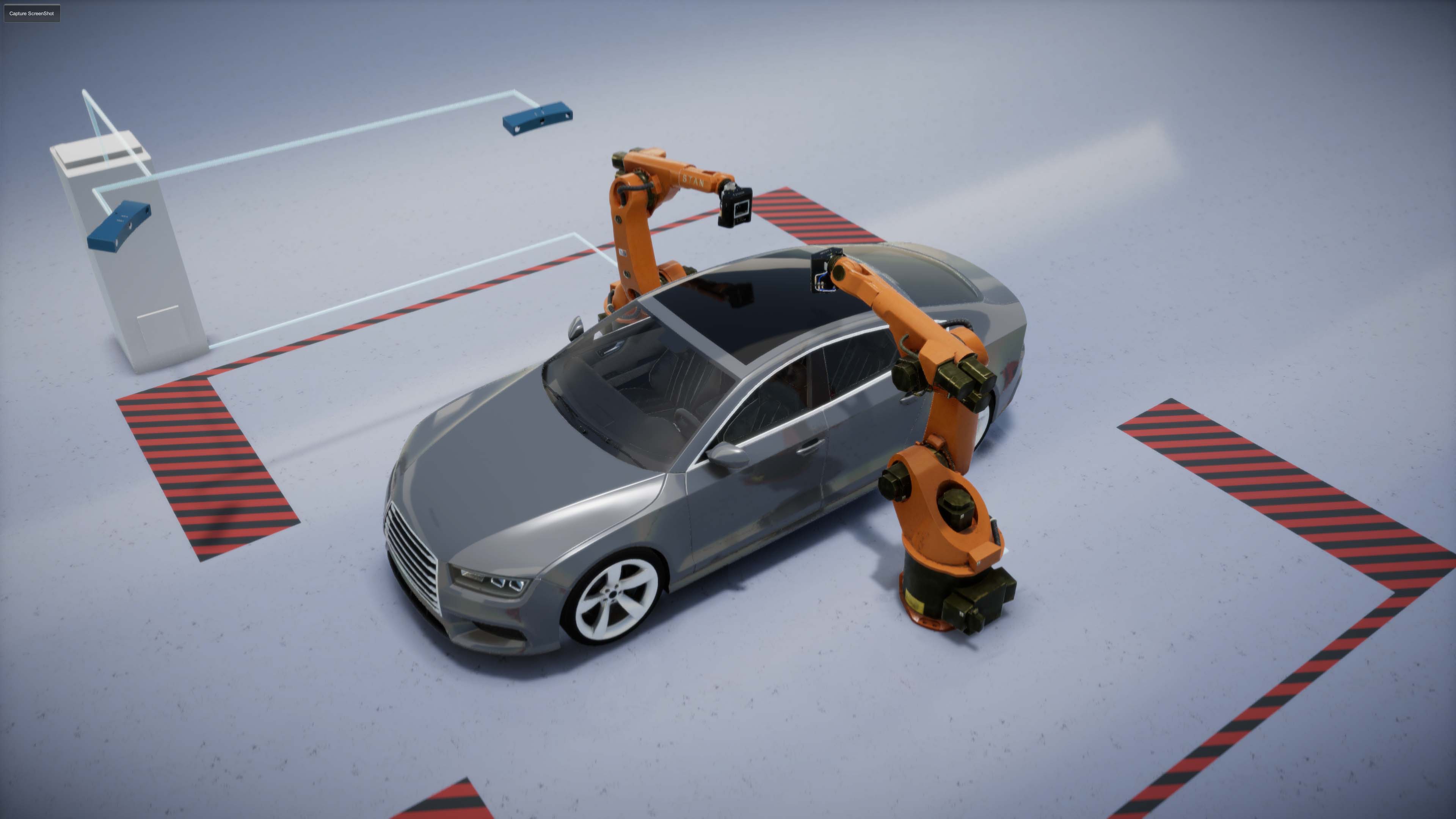

With VEPOSE, you can reliably determine the exact position of each individual vehicle in all six dimensions. During conveyor operation, the conveyor system provides information about the next car body type to the VEPOSE system. The car body is measured by high-end stereo cameras positioned above it, and the measured point cloud is overlaid with stored reference data. The positional correction data calculated in this way is transmitted to the subsequent robots, enabling them to perfectly adjust their path movements for gap measurements to the actual vehicle position. This ensures the measurement accuracy of flush and gap measurements during assembly, even with highly variable vehicle positions.
