Highly accurate gap measurement tool
Enables correlation-free measurements across all production stages – ranging from in-line and near-line monitoring to off-line analysis for maximum precision.
Achieve a complete profile scan without assumptions, powered by patented CALIPRI technology for unmatched accuracy and reliability in every measurement.
From measurement to data handling – complete solutions for OEM needs, including handheld devices, automation, vehicle positioning, and rework stations.

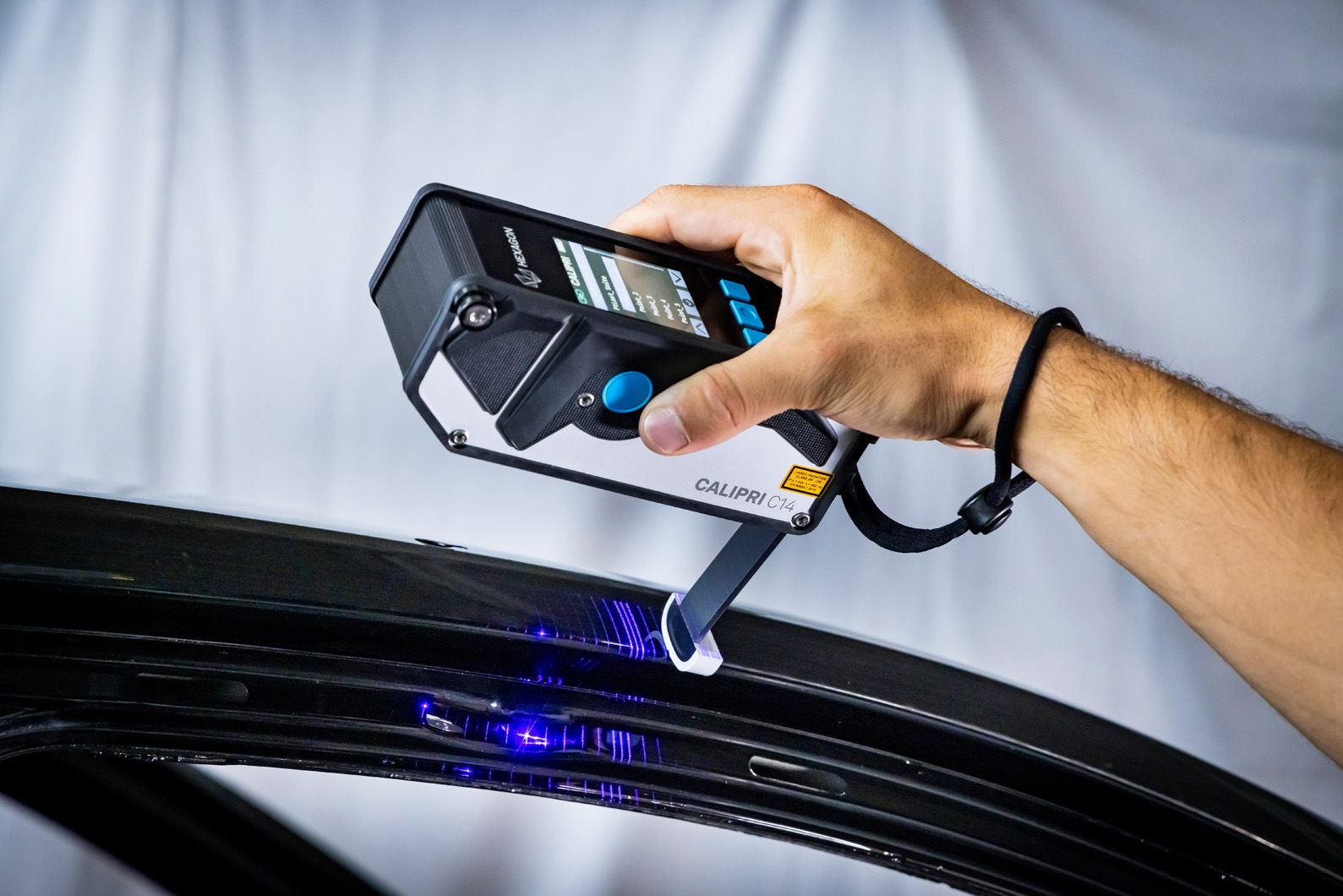

Thanks to its distinctive rotating movement, the compact CALIPRI C14 measuring system quickly examines highly complex profile shapes in just seconds. A variety of inspection techniques enable comprehensive assessment of flush, gaps, folded edges, design lines and other profiles.

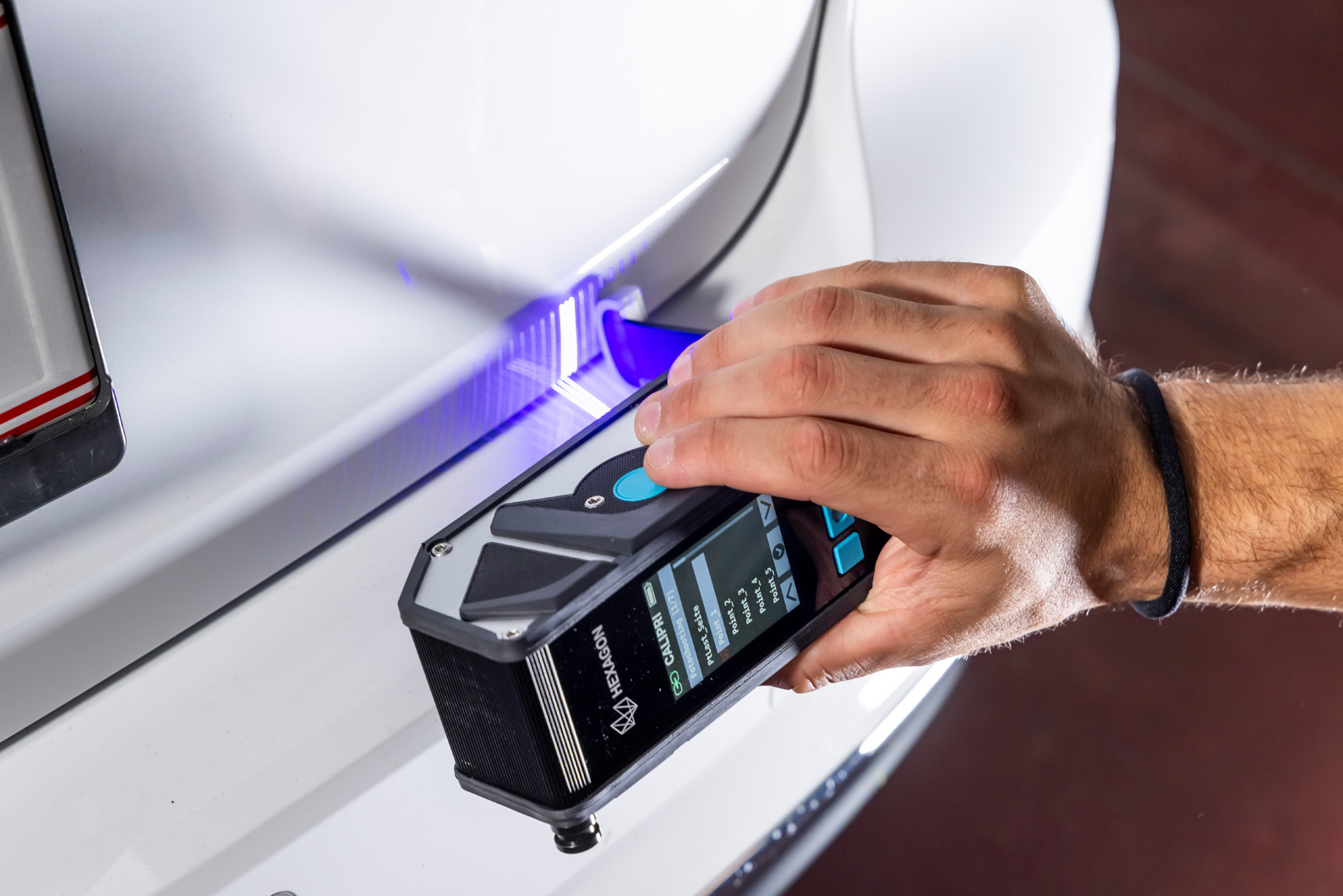

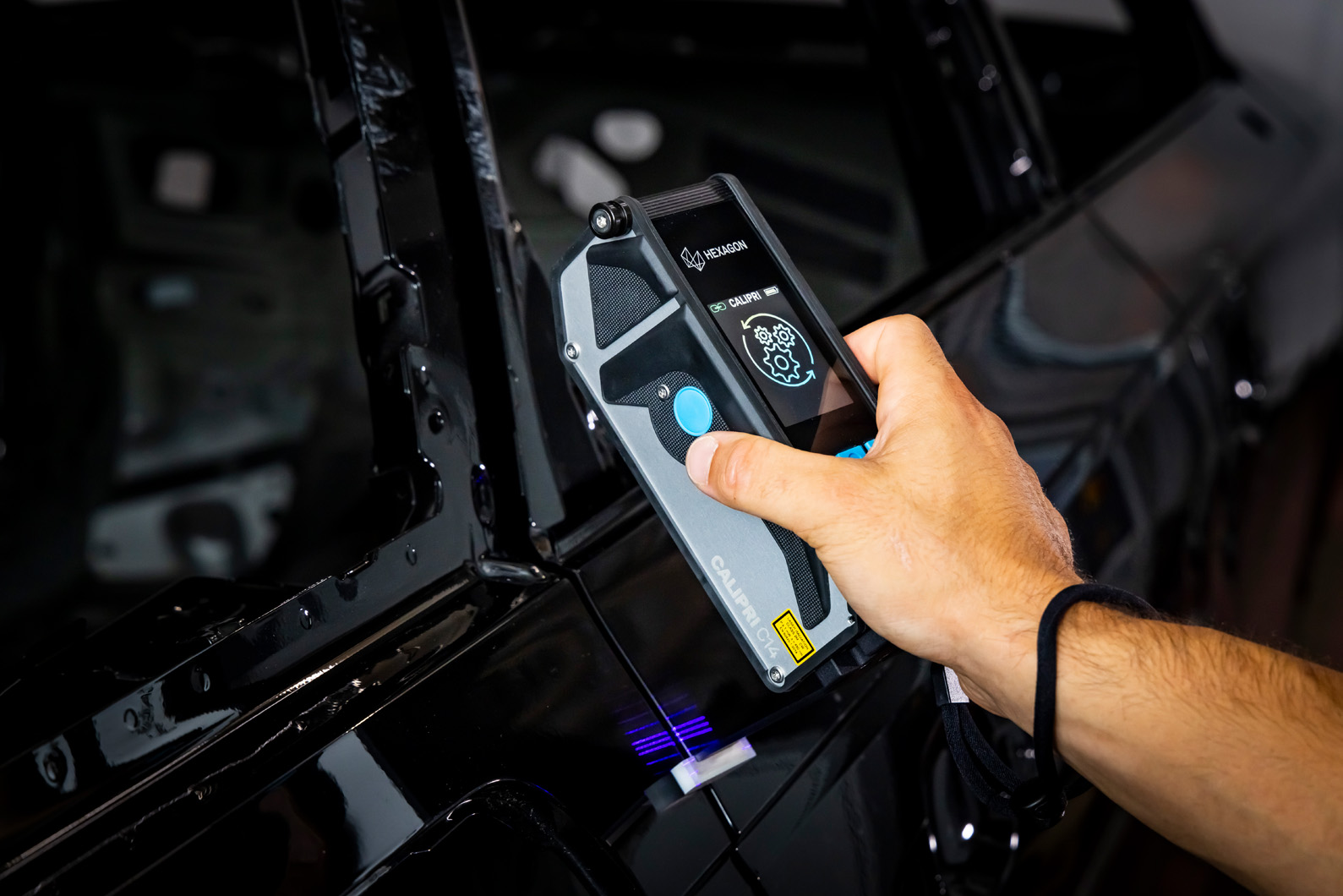

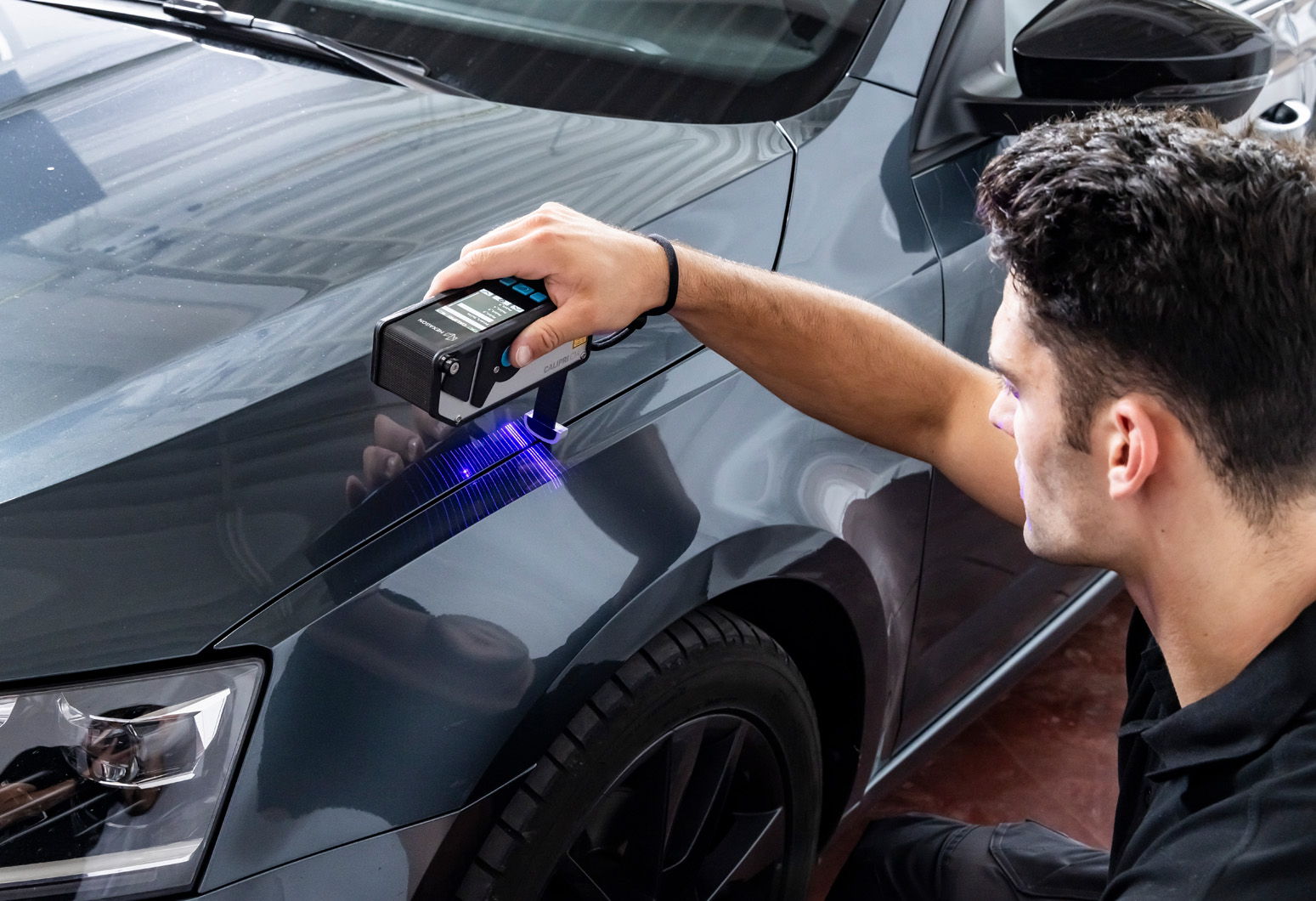

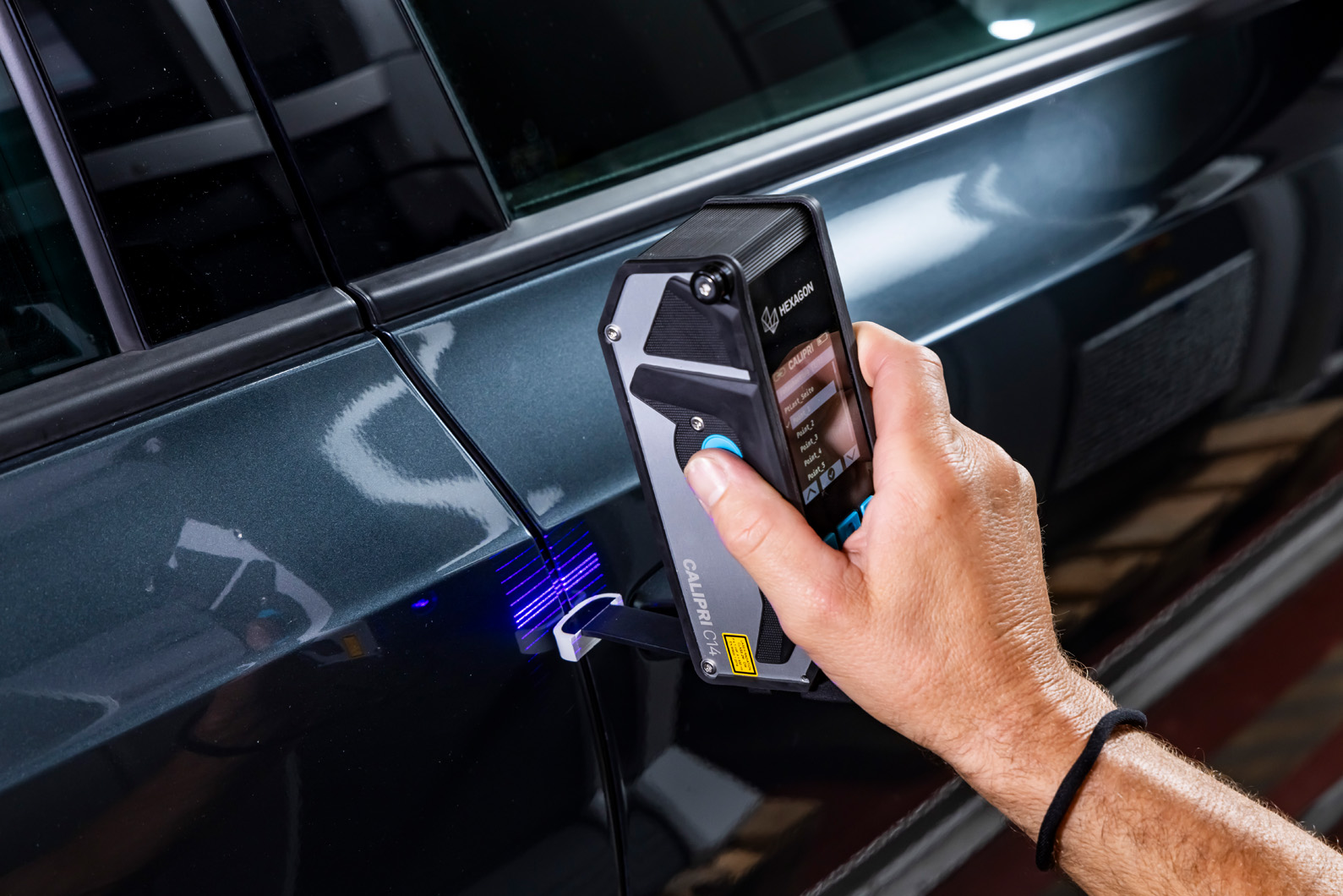

The CALIPRI C14 flush and gap measurement device employs the patented CALIPRI Principle, which utilizes laser light section technology. Guiding the sensor along the profile under examination, the operator performs the measurement. During the rotating motion, the software captures the gap profile or edge from multiple angles. Thanks to automatic roll and pitch correction, the system remains unaffected by any tilts or rotations of the sensor.

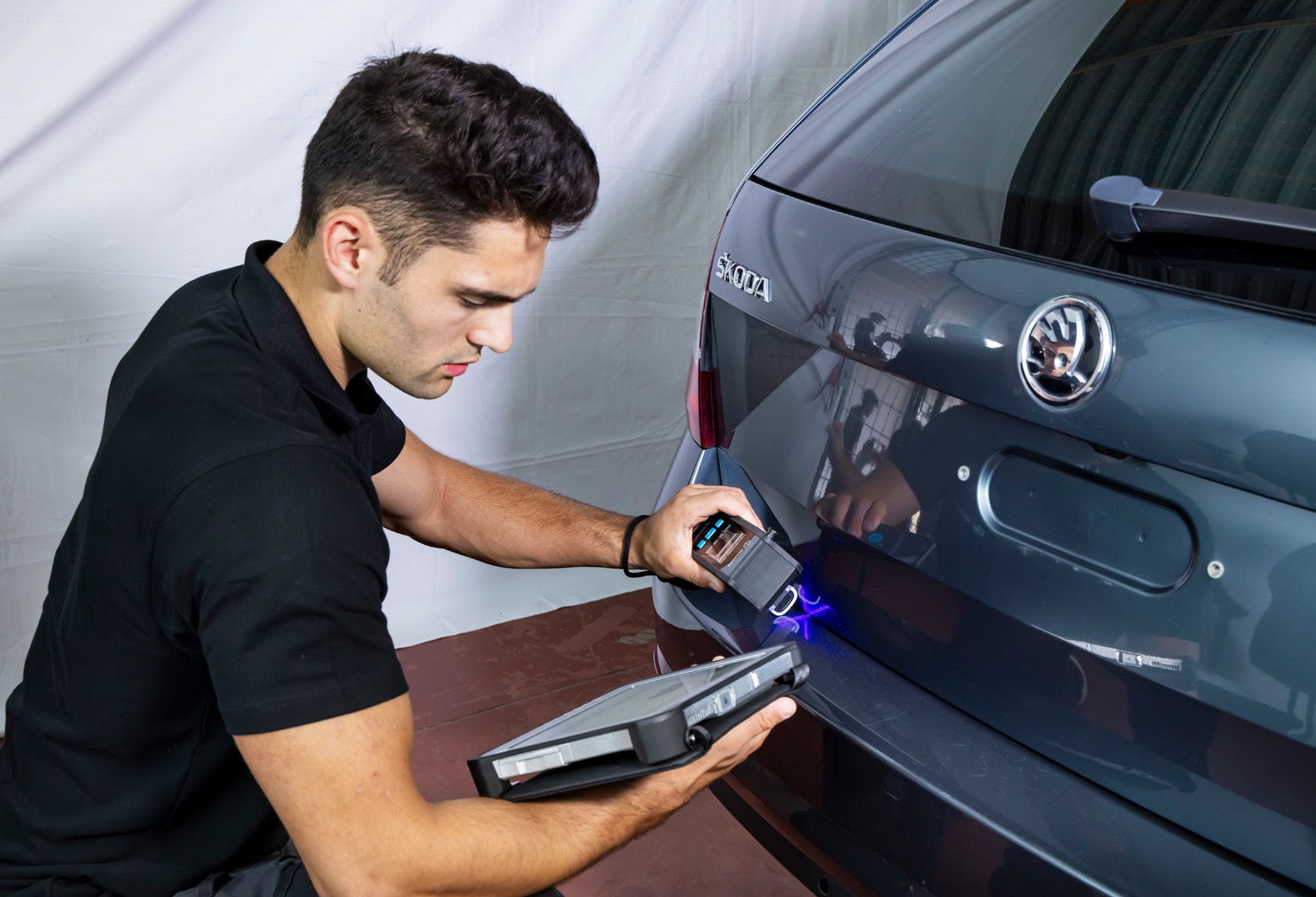

Following the flush and gap measurement process, results are displayed as measured values directly on the sensor and as a profile curve on the connected tablet or PC. Deviations from target values are highlighted in colour. Results can be documented through PDF measurement reports or exported to your database.
