Switch Profile Measure­ment

Precise railroad switch profile measurements

Learn More
Worth Knowing
Did you know these facts about the
module CALIPRI C42 | Switch profile?
  • At a
    glance

    Widths, depths, and grades are displayed on the sensor and the tablet. Measurement values are compared with pre-defined limits.

  • Intuitive
    feedback

    The device screen shows the capture progress, while audio, haptic, and visual feedback provide 360° guidance, ensuring easy and intuitive operation for the user.

  • Compact
    sensor

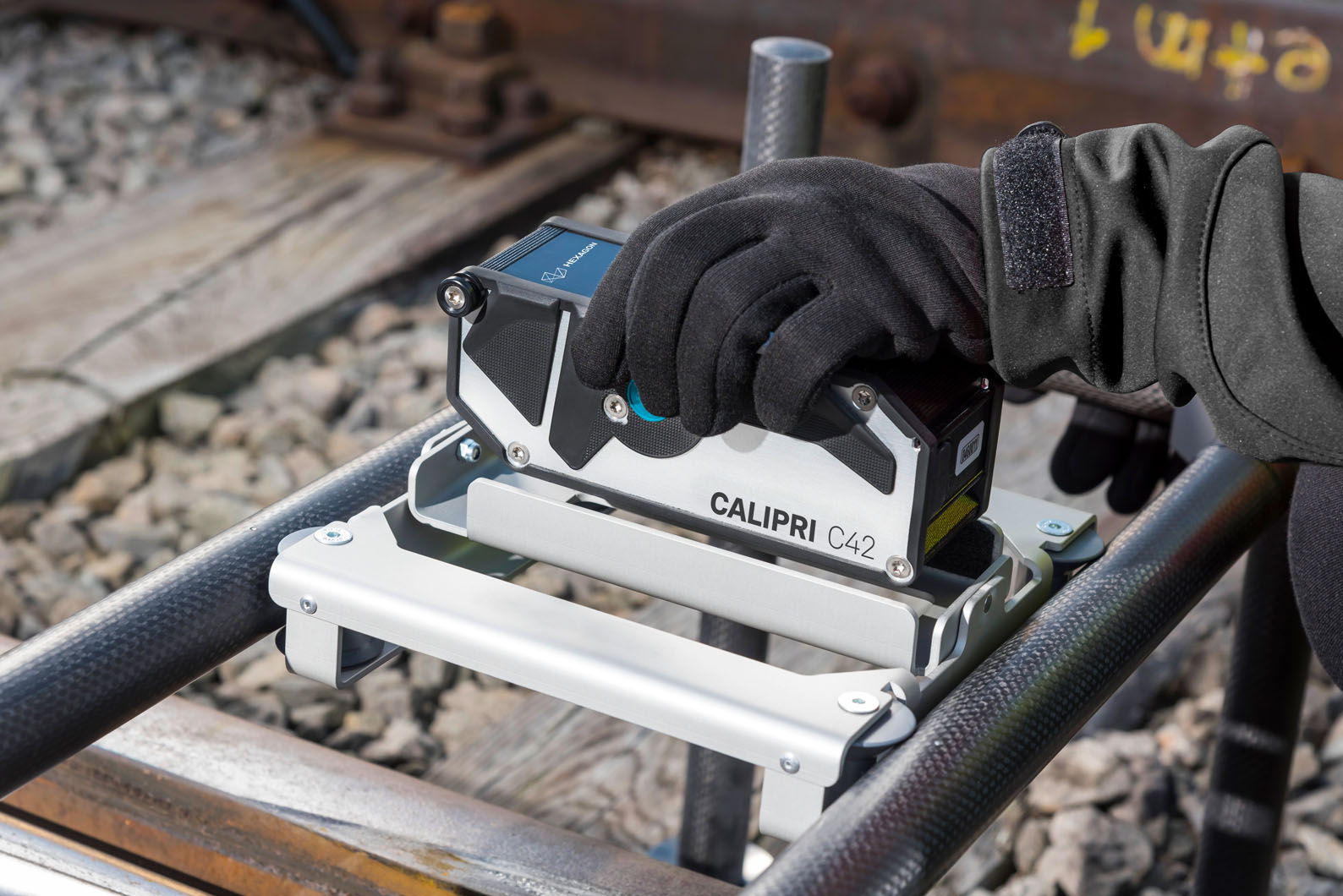

    CALIPRI C42 is a lightweight, user-friendly sensor that enables comfortable measurements in the rail industry. One sensor is all you need for every measurement task.

About the product
Fast and easy evaluation

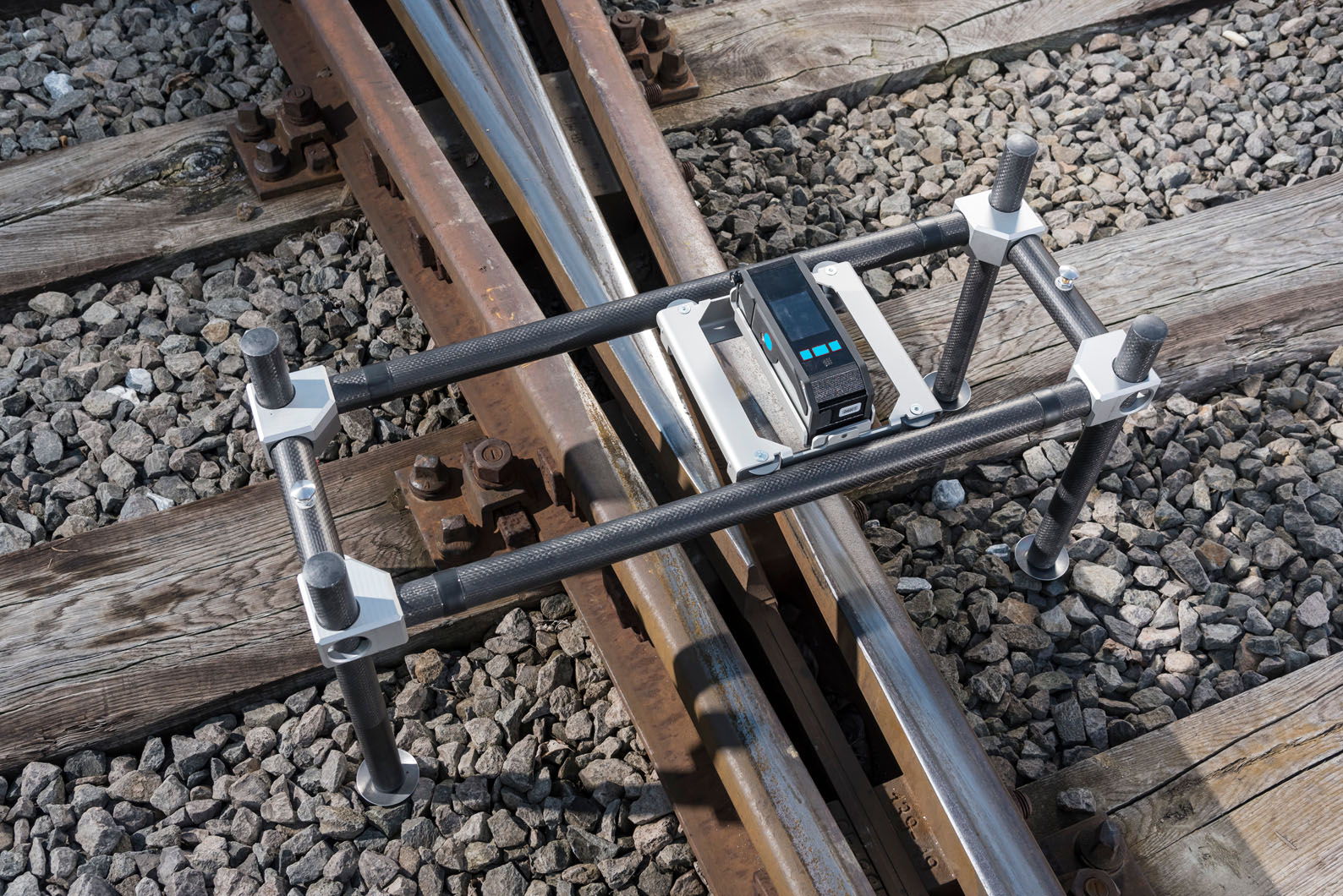

This CALIPRI C42 module offers precise, contact-free measurement of switch frogs and blades, determining key wear values like the lowering of the point of crossing. A lightweight carbon fiber gauge ensures easy sensor guidance, making it simple to capture accurate data within seconds.

About the product

Advanced turnout inspection

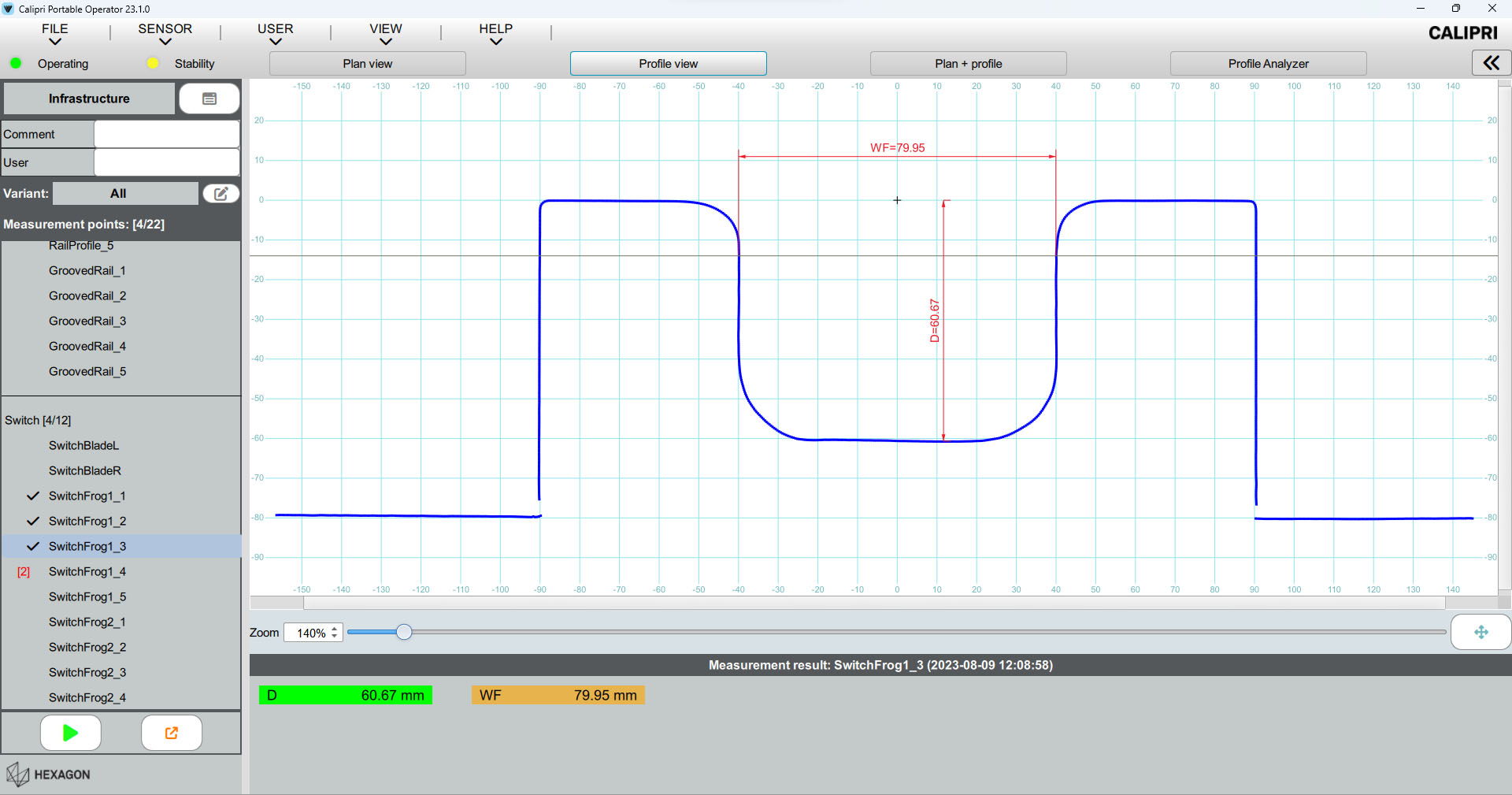

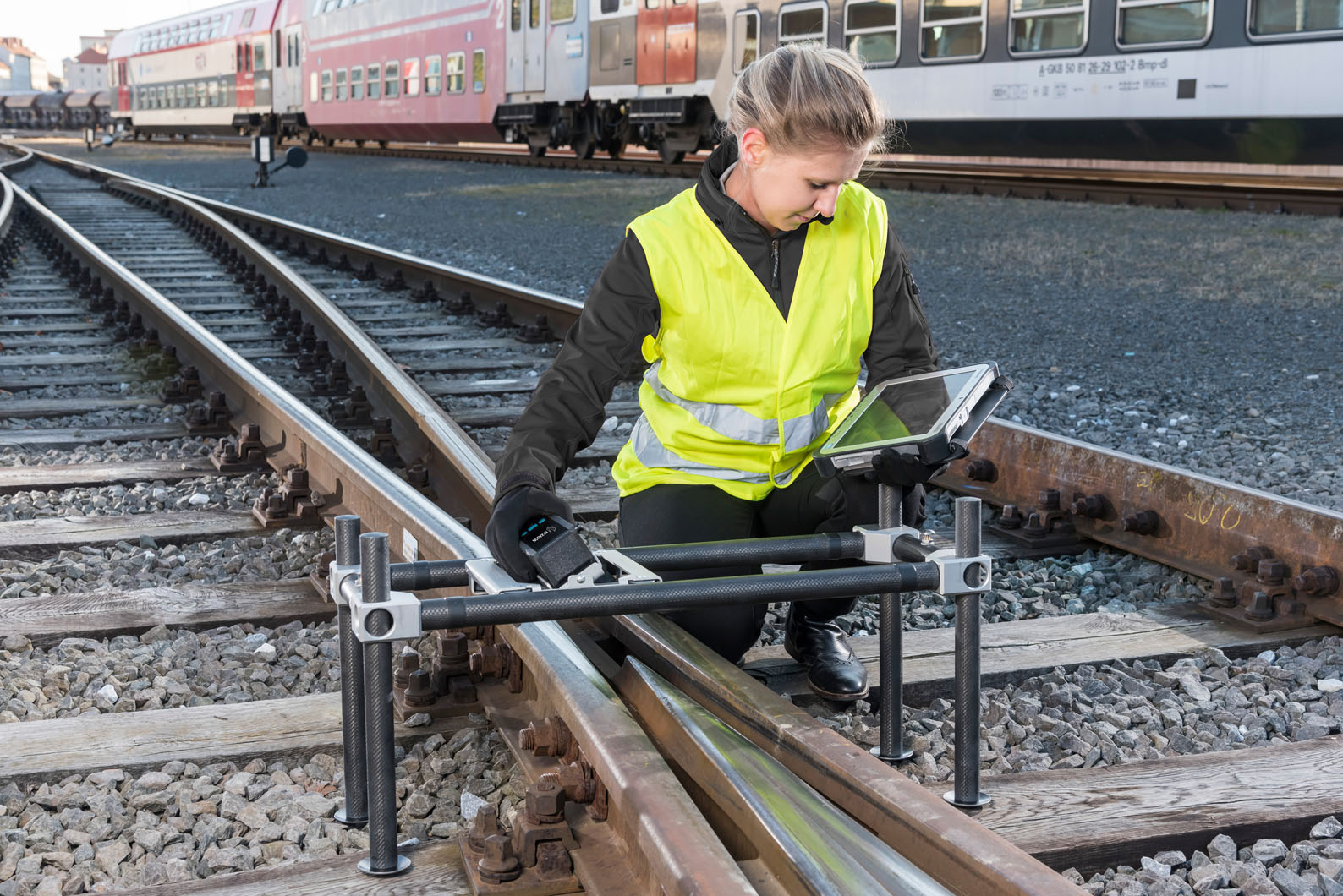

The CALIPRI railroad switch measurement system enables highly precise wear evaluation without contact, eliminating the need for mechanical calipers or templates. The sensor’s camera-laser system records detailed profiles, displaying widths, depths, and grades on both the sensor and the tablet, and instantly compares them with predefined limits. The easy setup allows quick movement between railroad turnouts, and the immediate display of limit exceedances facilitates fast decision-making. Digital data transmission ensures secure, error-free documentation, forming a comprehensive system for track inspection when combined with the rail profile measurement module.
