Tyre thickness
measure­ment

Simultaneously measure tyre thickness and wheel profile

Learn More
Worth Knowing
Did you know these facts about the
module CALIPRI C42 | Tyre thickness?
  • Versatile measurement solution

    CALIPRI seamlessly integrates wheel profile measurement with tyre thickness evaluation, offering comprehensive wheel maintenance in one tool.

  • 360°
    feedback

    Audio, haptic and visual feedback allows simple operator use. Capture progress is displayed on the device screen.

  • User-independent results

    CALIPRI C42 delivers reliable results by eliminating human error. It automatically adjusts for distance, angle, and tilts, ensuring precise measurements.

About the product
Comprehensive rim measurement tool

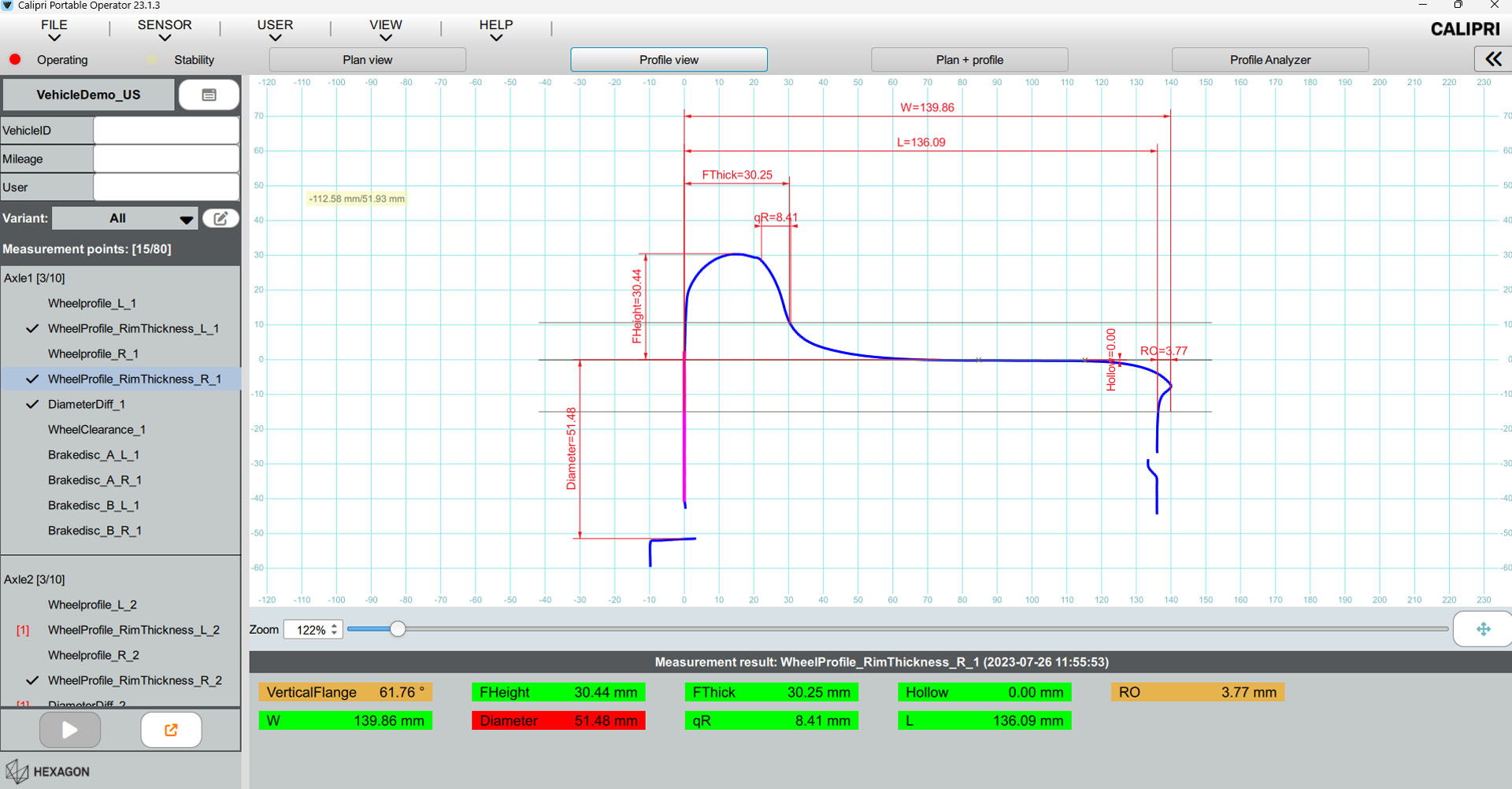

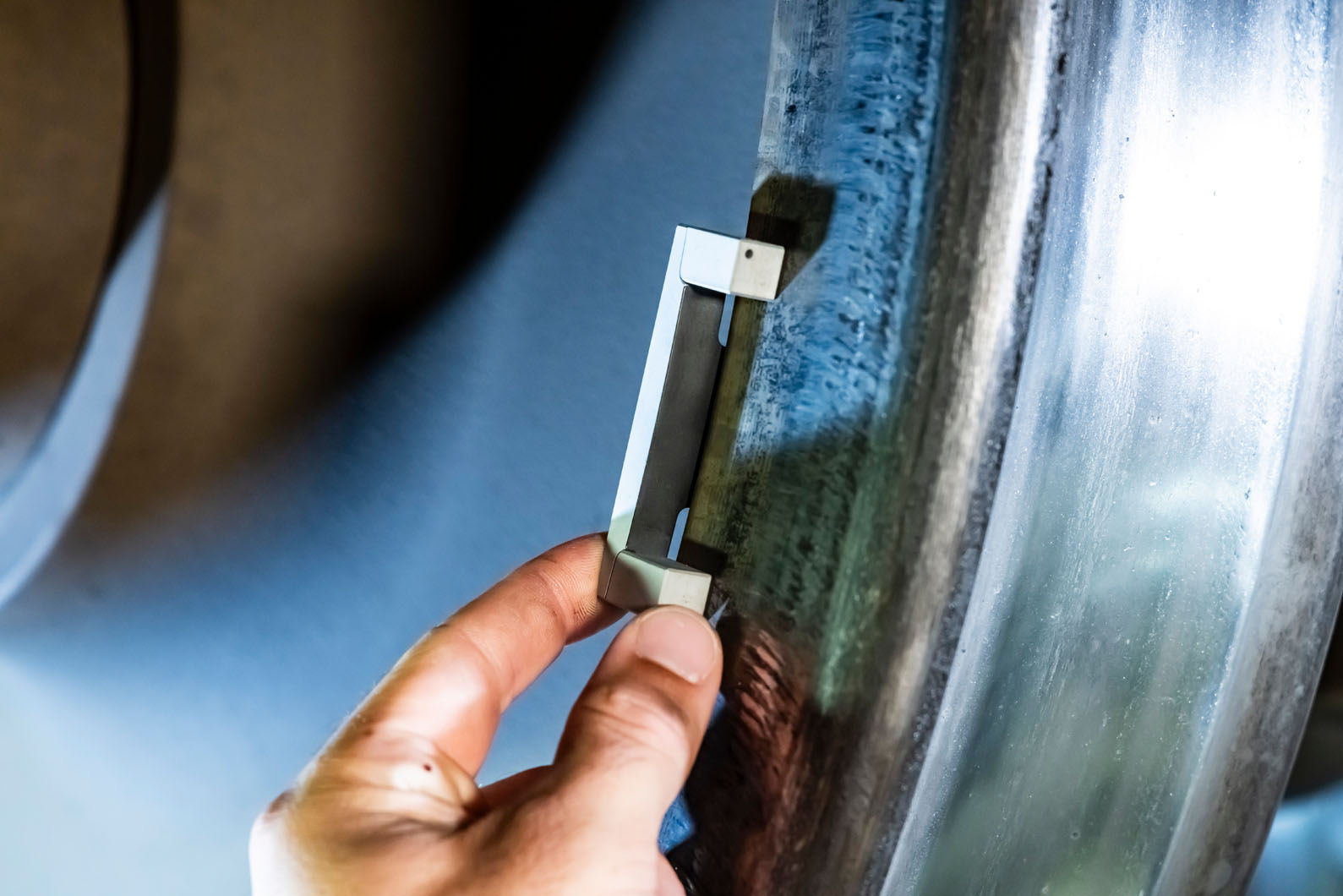

This CALIPRI C42 module extends the wheel profile measurement by enabling tyre thickness measurement for all common wheel types in heavy and light rail. Depending on the wheel’s condition, the included small magnetic auxiliary gauge is attached to either the inner or outer abutting surface, or to the wear groove.

About the product

Error-free precision

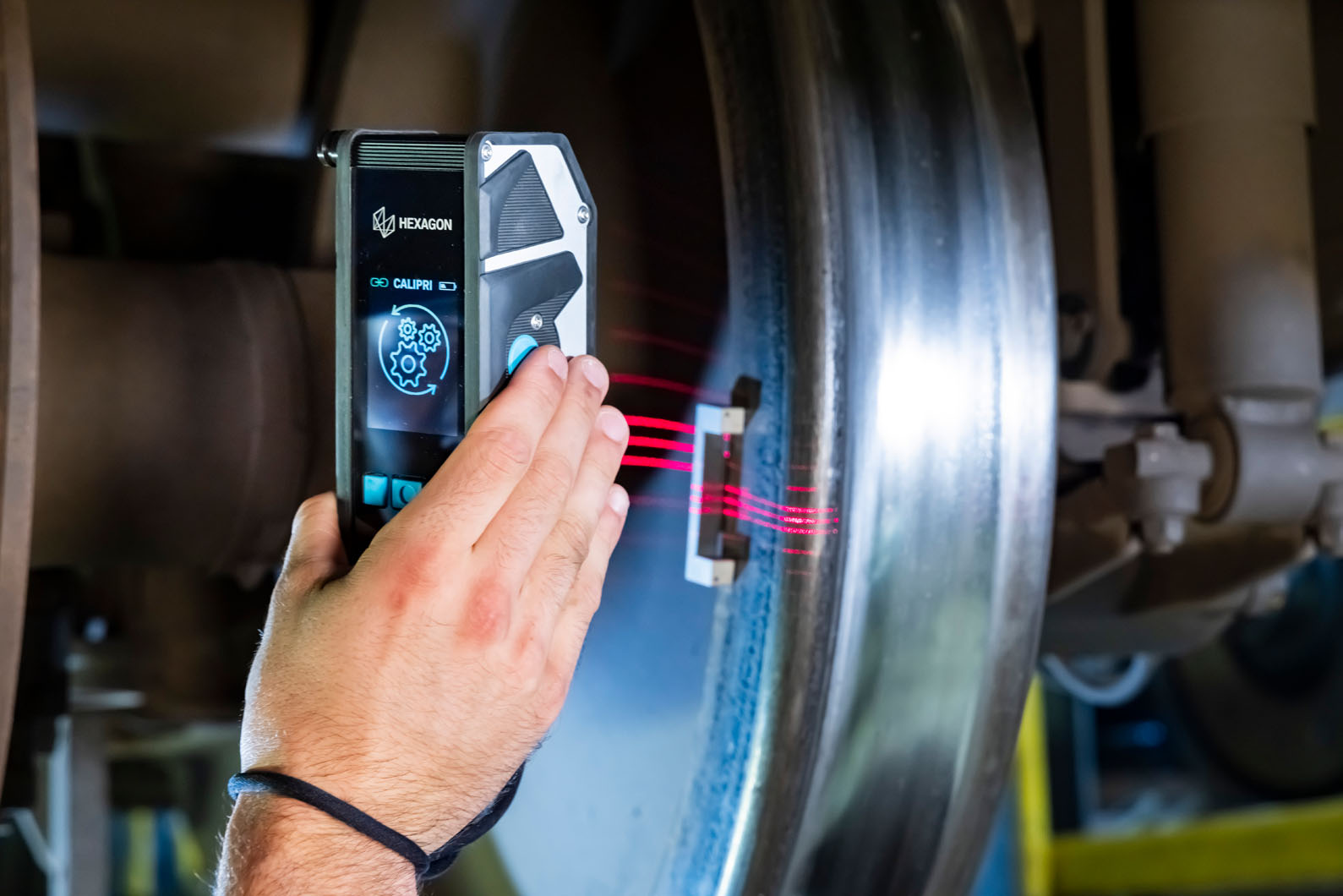

The patented CALIPRI Principle automatically compensates for any rolling or tilting of the sensor, eliminating errors caused by incorrect positioning or misreading values. With laser light section technology, the user simply guides the sensor over the object by hand, without needing to maintain precise distance or angle. The profile is captured and evaluated from multiple perspectives. Once measured, the data is instantly ready for analysis and tamper-proof digital transfer. Measured dimensions are displayed on a tablet or the sensor itself and can be compared to predefined limit values, replacing handwritten documentation entirely.
