Automated flush and gap measurement

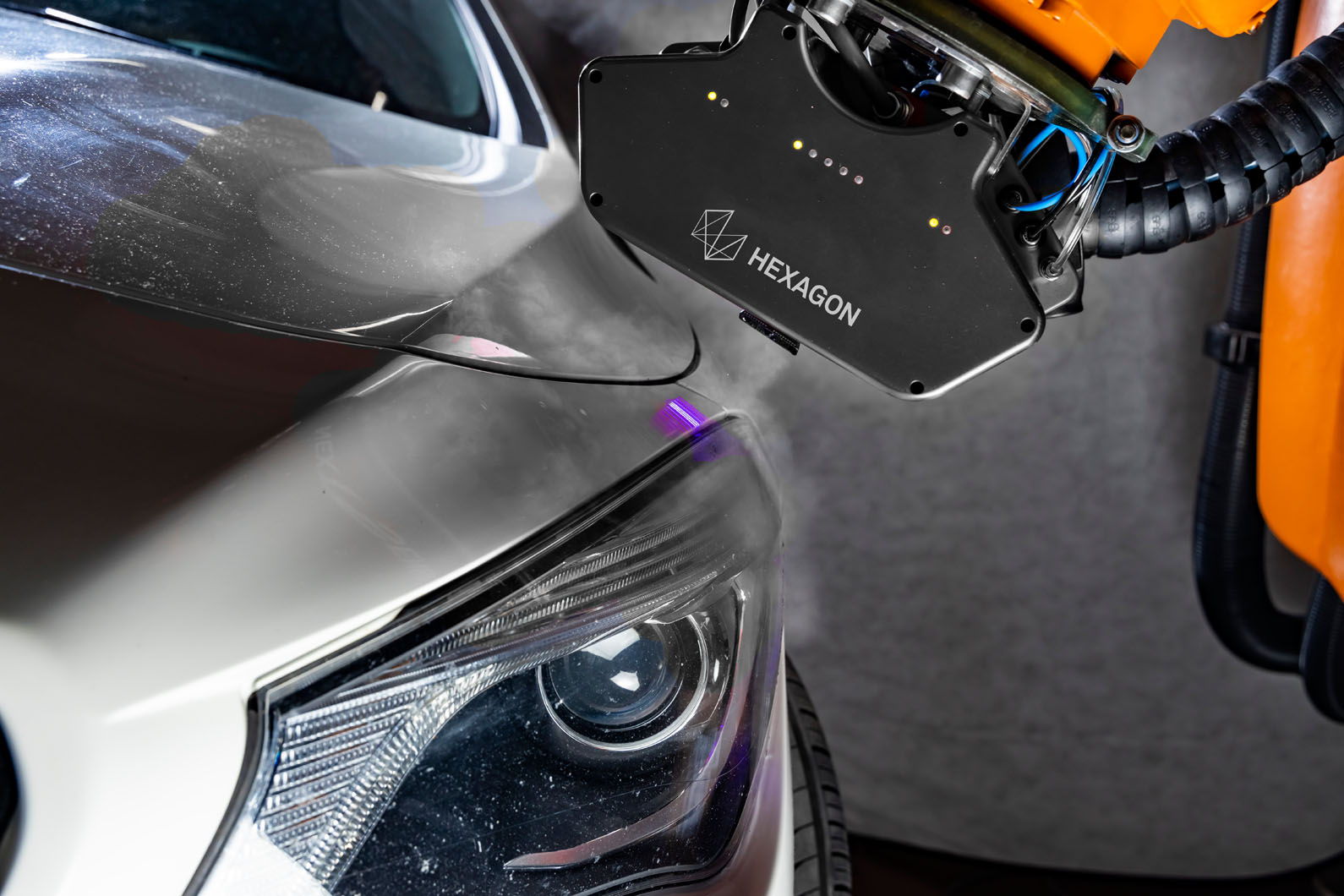

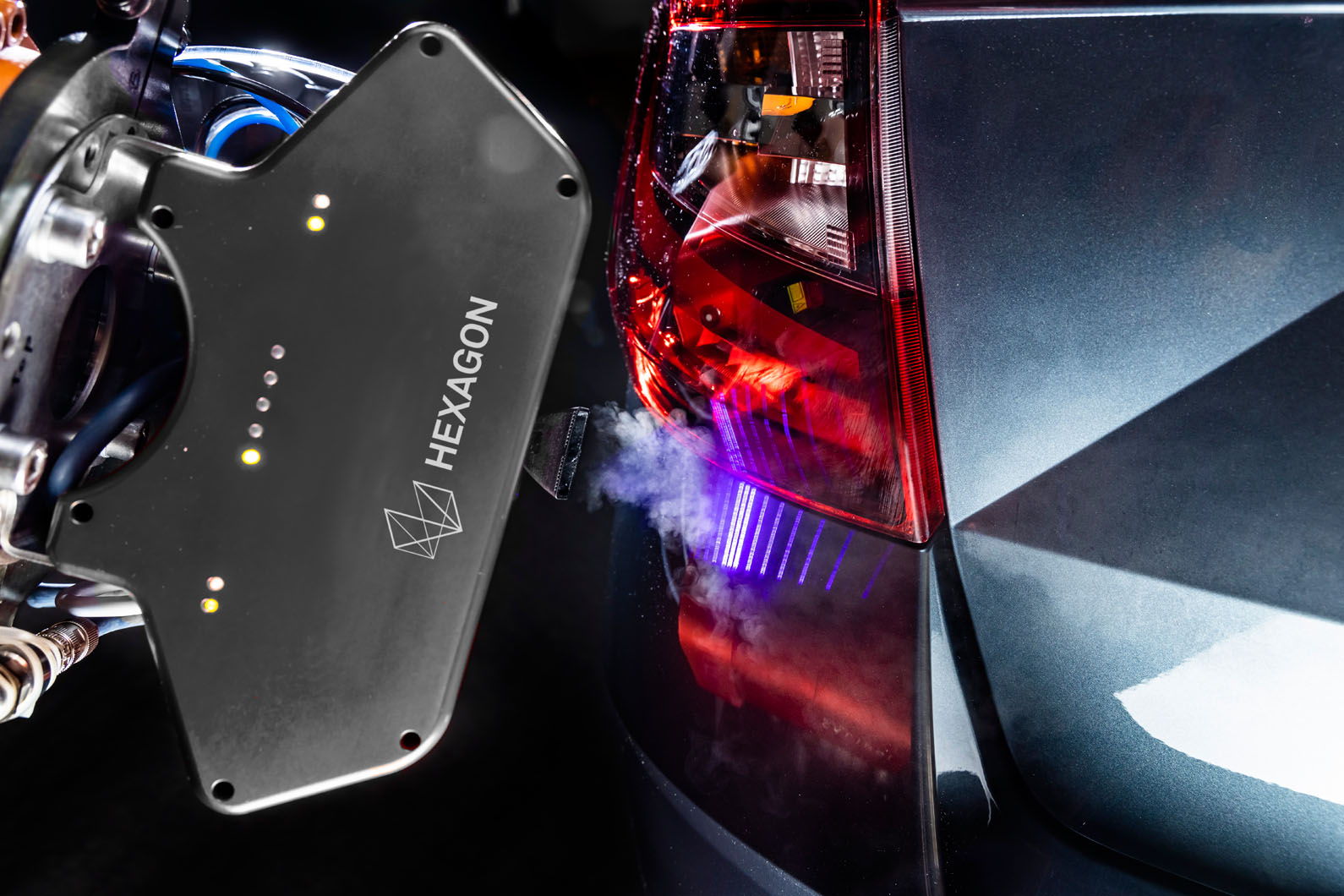

Full flush and gap measuring performance on all types of surfaces using patented CaliBreeze technology. This leads to reliable and precise results even around windows, head and tail lights.
CALIPRI CB20 enables 100 % flush and gap inspection in all stages of car manufacturing lines. Ex works calibrated and temperature compensated dual sensor heads capture the complete gap profile extremely fast.
Due to identical evaluation strategies applied to all CALIPRI systems, all flush and gap values are directly comparable. This makes trends and deviations fully traceable across the entire process chain.

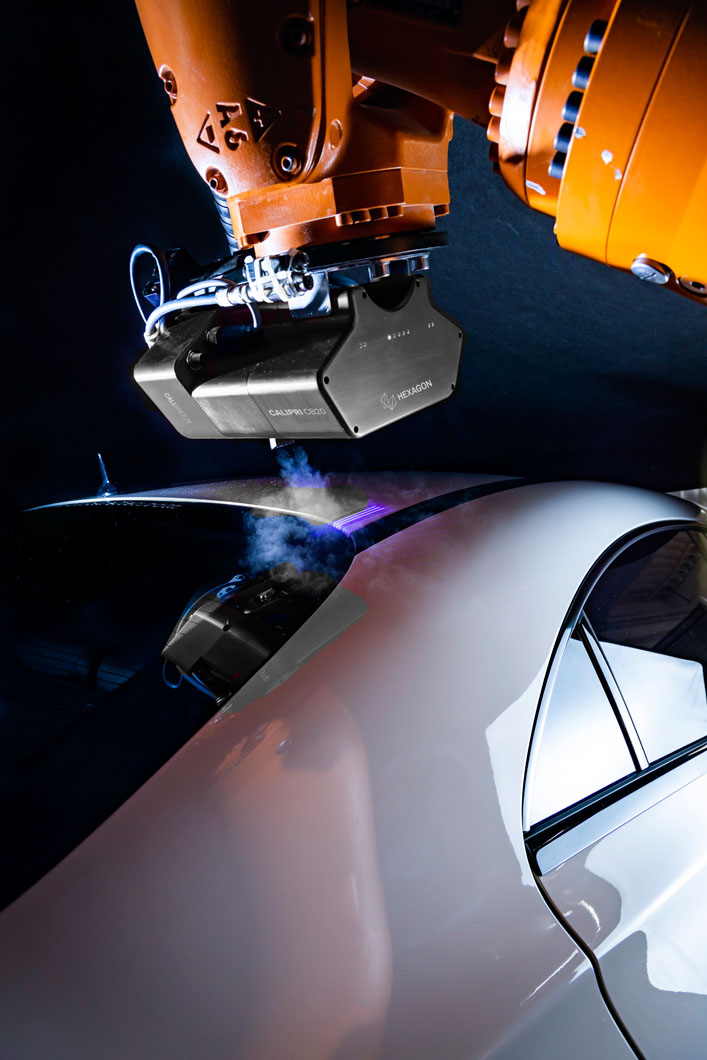

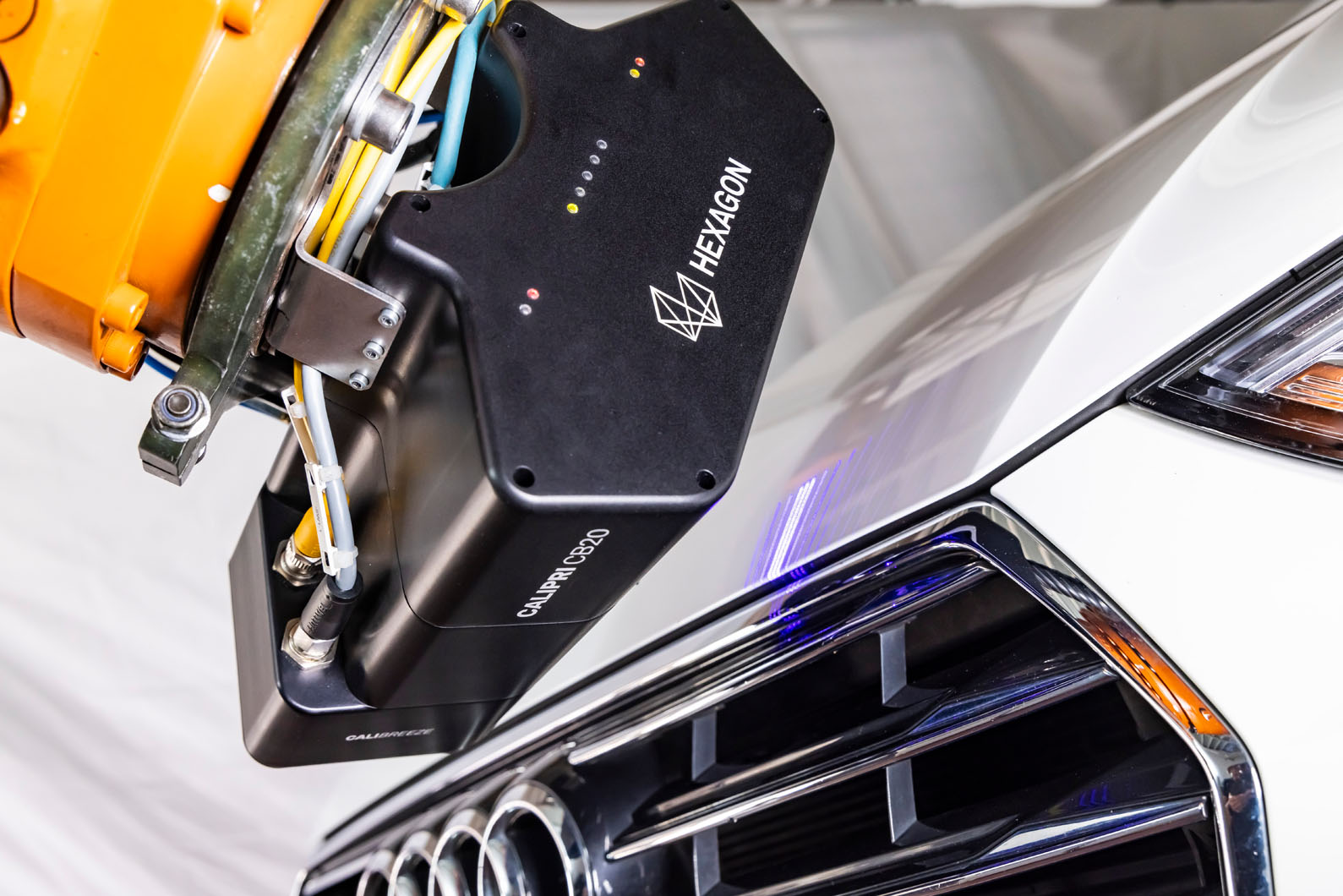

The fully automatic CALIPRI CB20 system, designed for 100% inline inspection in final assembly, body-in-white, and paint shop environments, meets the most stringent cycle time and accuracy requirements. Compatible with any robot, the system features the patented CaliBreeze technology and the proven CALIPRI Principle, allowing for precise optical measurements on all surface types.

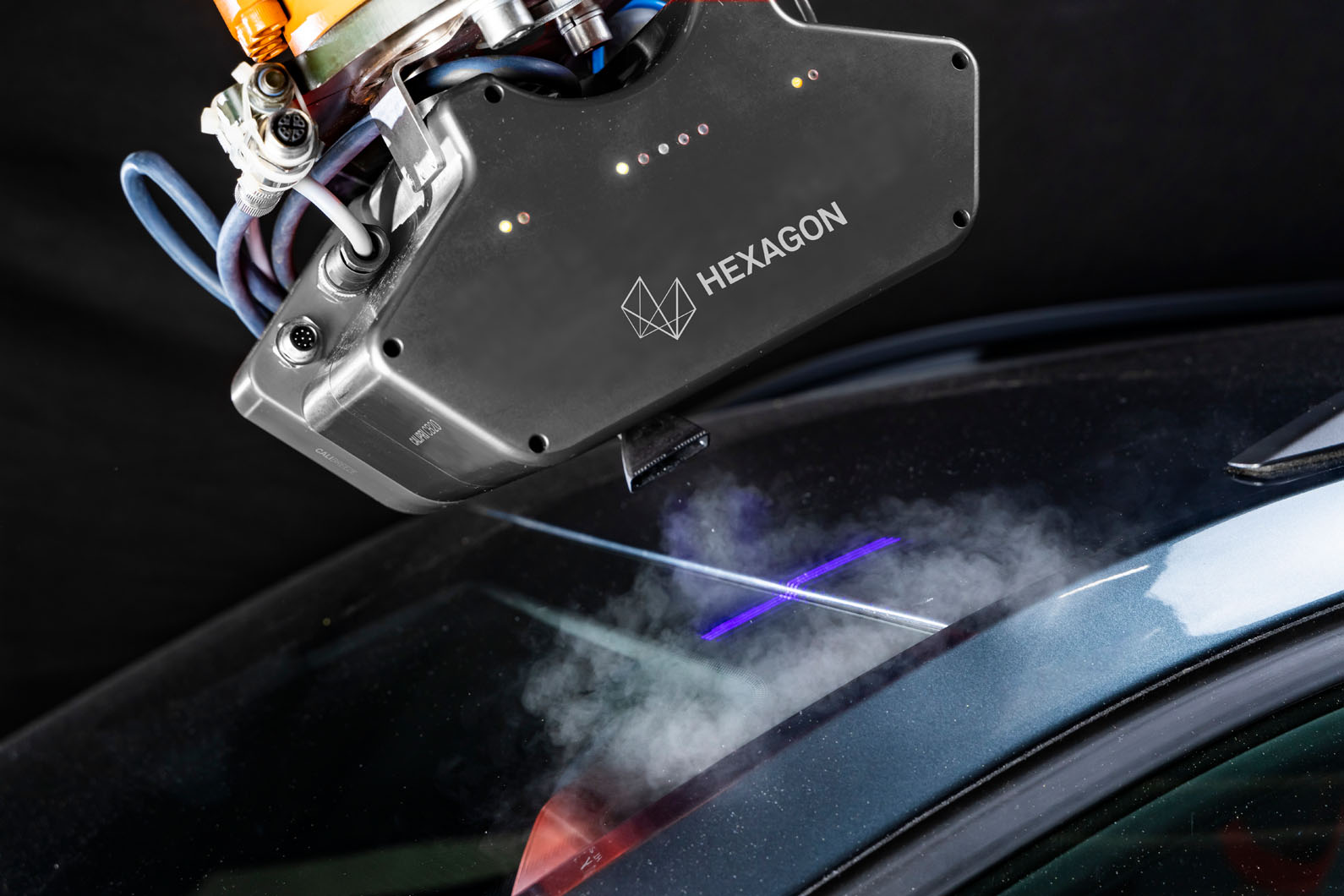

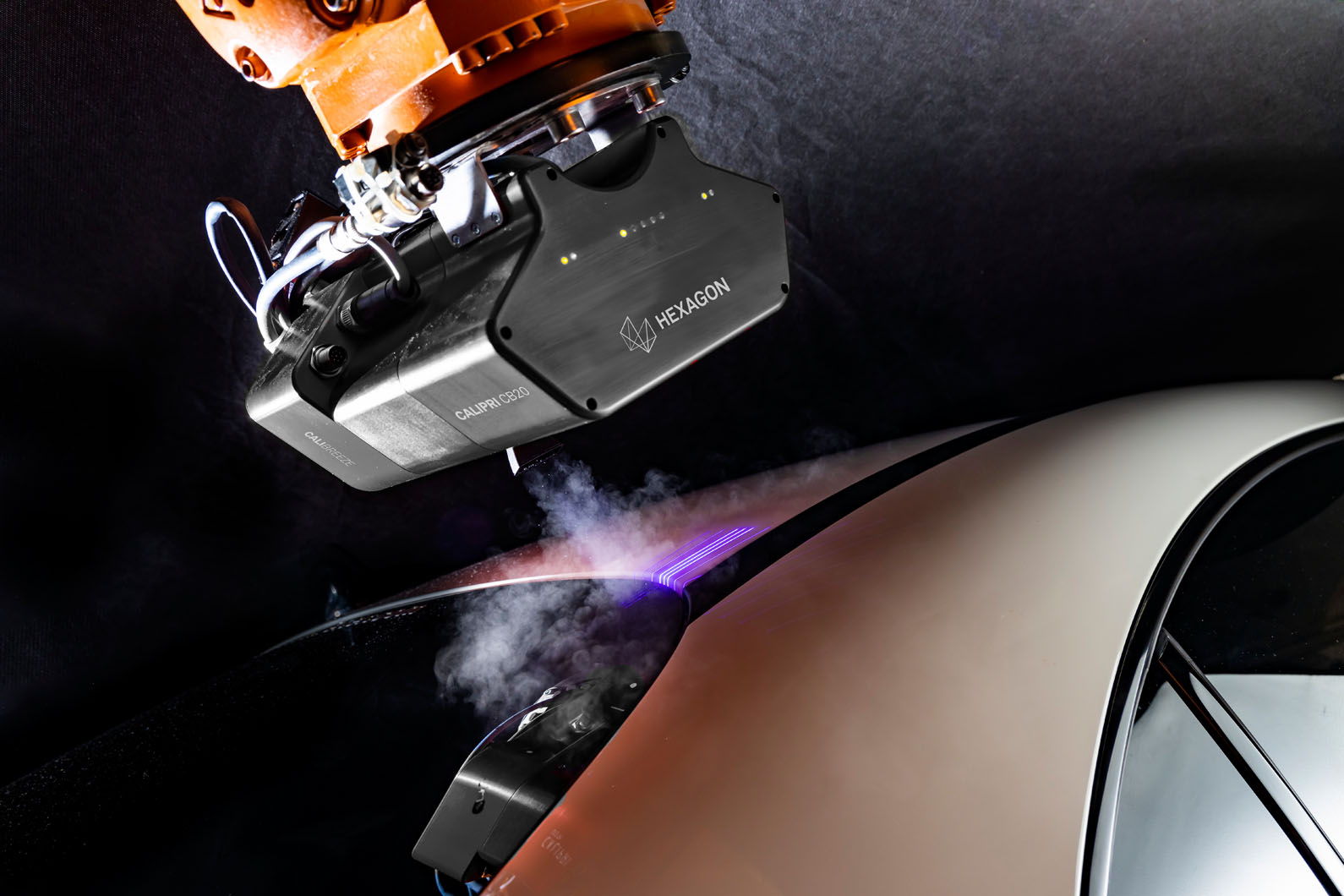

To ensure in-depth recording of the complete gap geometry, the CALIPRI Principle is employed. The CaliBreeze technology, on the other hand, tackles the issue of poor reflectivity in transparent and semi-transparent surfaces by applying a fine layer of condensed water to the measurement object. This temporary layer boosts optical contrast, enabling precision measurements at high speeds, and disappears within seconds without leaving any residue.
Additionally, the dedicated solution for determining the position of vehicles – VEPOSE – ensures to measure at the right spots. CALIPRI CB20 and its add-ons therefore represent a significant leap forward in the automation of flush and gap measurement.
